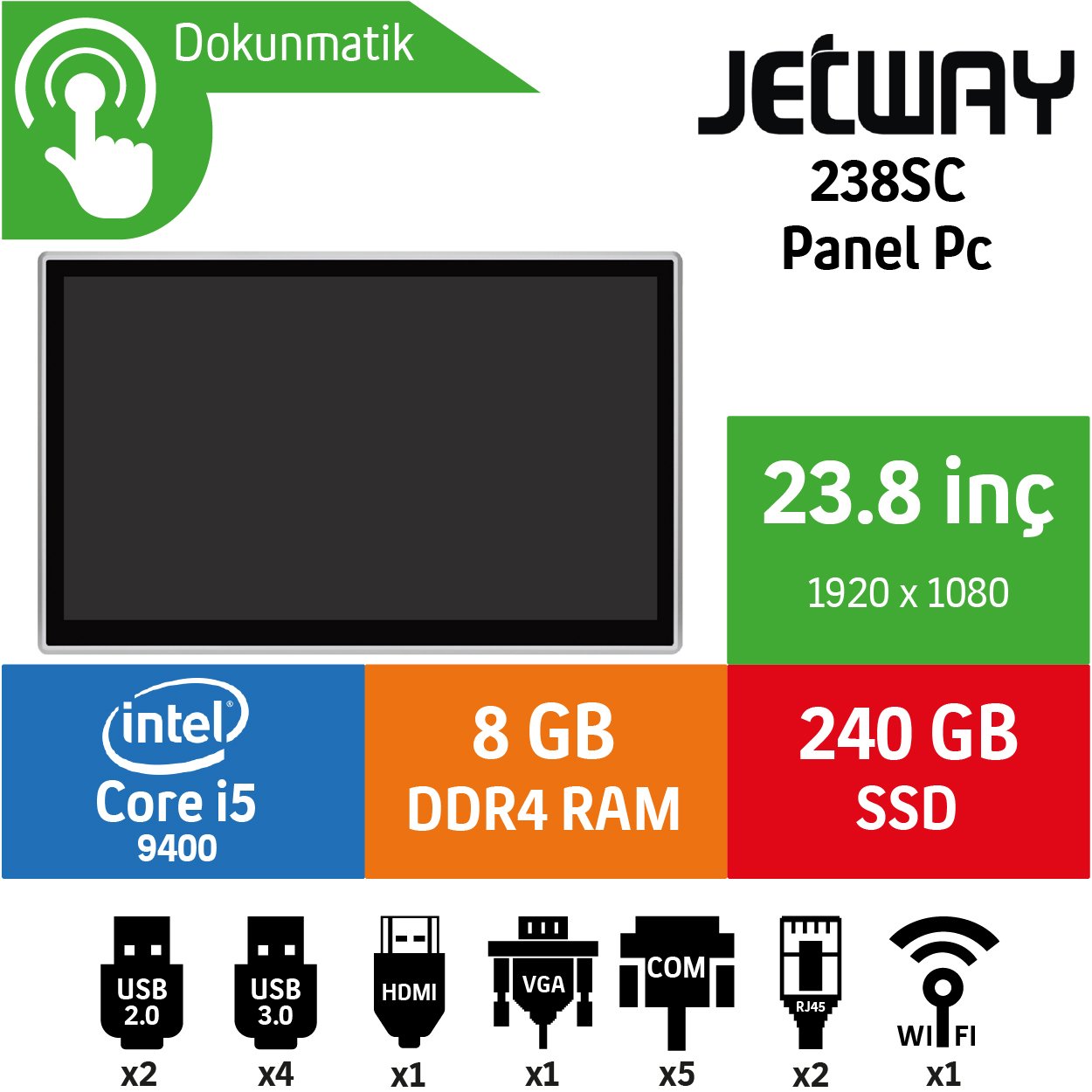

Jetway 238SC Intel Core i5 9400 8GB 256GB SSD Freedos 23.8" Endüstriyel Panel Pc

Display

Front Bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display Type

– 23.8″ With LED Backlight

Brightness (cd/m²)

– 250 nits

Display Color

– 16.7M

Resolution

– 1920 x 1080 @60Hz

Viewing Angle (H/V)

– 160°/160°

Pixel Pitch

– 0.2745 x 0.2745mm

Aspect Ratio

– 16:9

Contrast Ratio

– 1000:1

Response Time

– 25ms

Touch Screen

Type

– projected capacitive type

Active Range

– 528.04 x 297.46mm ±0.3mm

Transparency

– 85 ±5%

Operating Force

– ≦10g

Surface Hardness

– ≧6H (ASTM D3363, pressure 1N/45°)

CASE

Panel Material

– Aluminum

Case Material

– Iron

Color

– Silver + white

Coating Requirement

– Spray Paint

Main System

CPU

– Intel® LGA1151 Socket Core I3,I5,I7 Pentium T Series processor

RAM

– 2* DDR4 SO-DIMM (Max 32GB)

Flash ROM

– 128MB SPI Flash ROM

Speaker

– 2* 2W/8Ohm

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 10, Linux

Storage

SATA

– 1* 2.5” SATA HDD

M.2 (M Key)

– 1 * M.2 Socket (2242 M Key)

Expansion

M.2 (E Key)

– 1* M.2 E Key 2230 for WIFI or 3G/4G (Support CNVi)

I/O Connector

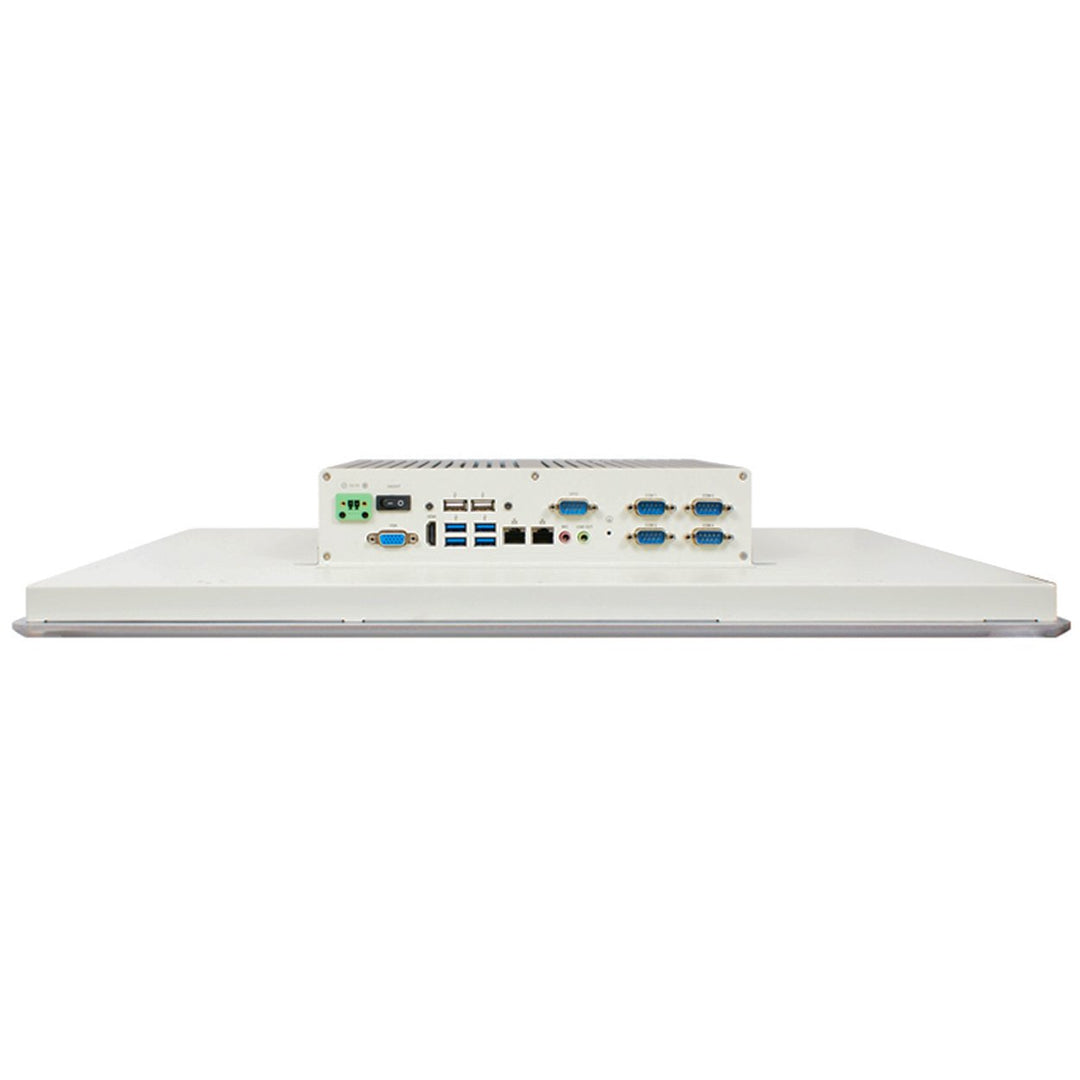

I/O Ports and Switches

– 4* USB3.0, 2* USB2.0
– 4* RS232
– 1* HDMI
– 1* VGA
– 1* 8bit GPIO (5V)
– 1* Line-out，MIC
– 2* LAN (Intel® I211AT + I219LM Gigabit LAN)
– 1* Locking Jack 12~24V DC input
– 1* Power button

Power Input

Input Power

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12V DC with over current protection fuse

Power Consumption

– 61.5W

Dimension

Case Dimensions

– 579.04*360.46*87.00mm

Certifications

Certifications

– CE, FCC, IP65(Front)-Option

Safety

Shock

– 1ms duration

Vibration

– 5~500Hz/1 Grms

Environment

Temperature

– Operating: -10 ~ 50° C
– Storage: -20 ~ 70° C
