Jetway 215C Intel Core i5 1135G7 8GB 256GB SSD Freedos 21.5" Endüstriyel Panel Pc

Display

– NEMA 4 rugged protection, metal front bezel
– 21.5″ With LED Backlight
– 250 nits
– 16.7M display color
– 1920 x 1080 @60Hz resolution
– 170°/160° viewing angle (H/V)
– 0.24825 x 0.24825mm pixel pitch
– 16:9 aspect ratio
– 1000:1 contrast ratio
– 8ms response time

Touch Screen

– Projected capacitive type
– 386.81 x 237.12mm ±0.3mm active range
– Transparency≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)

Case

– Aluminum panel
– Iron case
– White color
– Spray paint coating requirement

Main System

– Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10 / Linux

Expansion

– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)

Storage

– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)

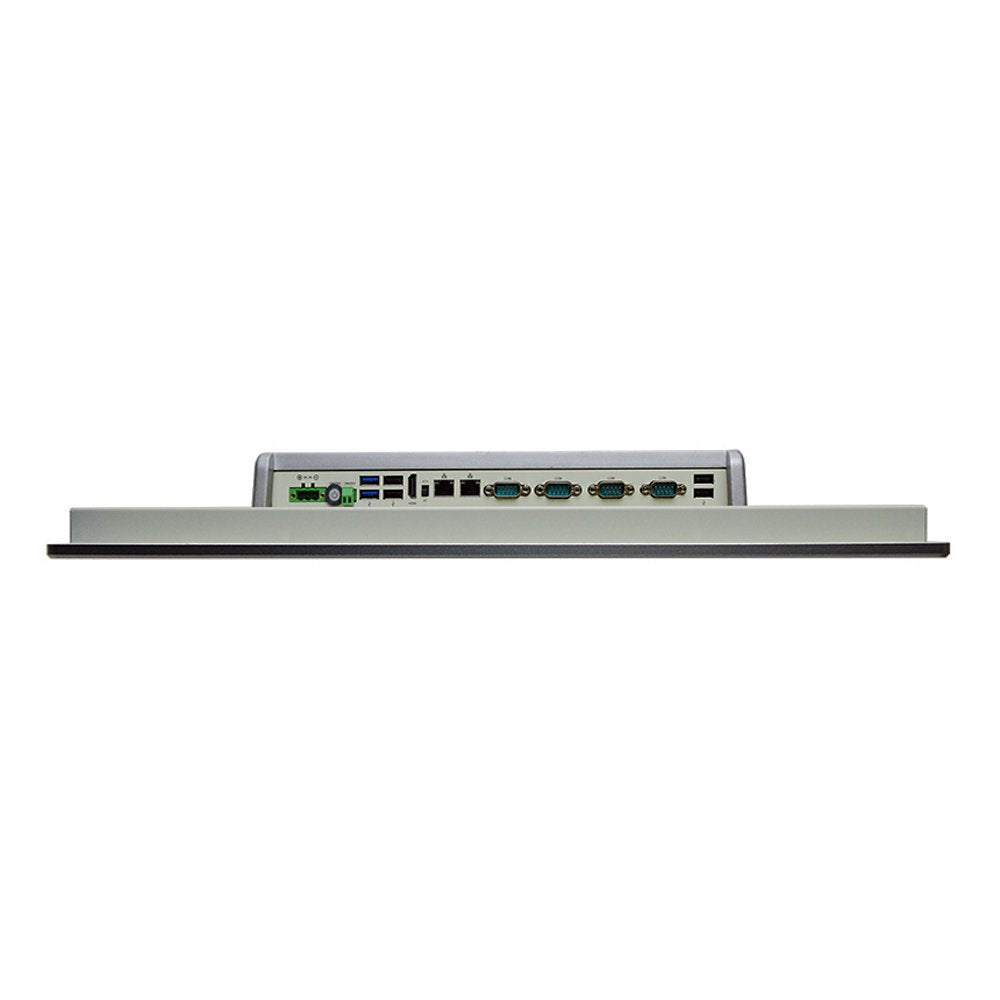

I/O Connector

– 2* USB3.2 (Gen. 2)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button

Power Input

– 12~36V DC-in
– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse

Power Consumption

– 45W

Dimensions

– 535.80 * 327.31 * 68.50 mm

Compliance

– CE, FCC, option

Safety

– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms

Temperature

– Operating: : -10°C ~ 60°C
– Storage: -20°C ~ 70°C

Warranty

– 2 Years Limited Warranty
